Schnittstellen |
Allgemeines |
Verbindungen zur Datenübertragung zwischen Computer und Geräten |
| Liste |
| Gruppe | Bemerkungen |
| PATA |
klassische IDE |
| SATA |
|
| USB |
|
| Fire Wire |
|
| Ethernet |
|
|
| PATA |
| Name | MBaud | Art |
Hot-Plug / Plug & Play | Geräte |
Bemerkungen |
| PIO 0,1,2 | 3,33-8,33 |
parallel |
nein |
2 |
klassische IDE |
| E-IDE PIO 3,4 | 11,11-16,66 |
| Ultra-DMA 0-6 |
16,66-133 |
|
| SATA |
| Art |
Hot-Plug / Plug & Play | Geräte |
Bemerkungen |
| SATA 1 |
150 |
seriell |
z.T |
1 |
|
| SATA 2 |
300 |
|
| SATA Express |
40.000 |
|
|
|
|
|
| PCI |
| Name | MBaud | Art |
Hot-Plug / Plug & Play |
Geräte | Bemerkungen |
| PCI Express 4.0 |
40.000 |
parallel |
nein |
|
|
|
USB |
| Name | MBaud | Art |
Hot-Plug / Plug & Play |
Geräte | Bemerkungen |
| USB 2.0 |
480 |
seriell |
Ja/Ja |
127 |
|
| USB 3.0 |
5.000 |
|
| Fire Wire |
| Name | MBaud | Art |
Hot-Plug / Plug & Play | Geräte |
Bemerkungen |
| IEEE 1394a |
100/200/400 |
seriell |
Ja/Ja |
63 |
|
| IEEE 1394b |
800 |
6449 | |
|
| Ethernet |
| Name | MBaud | Art |
Hot-Plug / Plug & Play | Geräte |
Bemerkungen |
| 100 Mbit |
100 |
seriell |
Ja/Ja |
1 |
|
| 1 Gbit |
1000 |
seriell |
Ja/Ja |
1 |
|
|
| PCMCIA |
|
| COM |
|

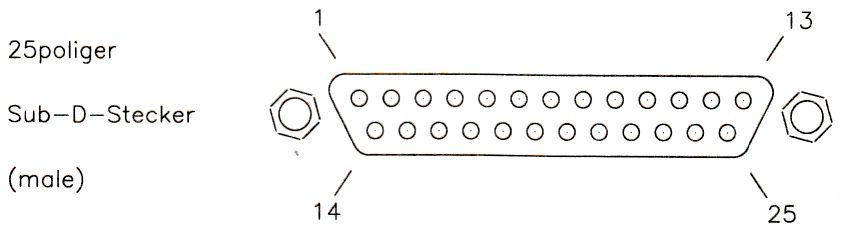

| Serielle Schnittstelle |
 |
- 1 Ground
- 2 Transmit Data
- 3 Receive Data
- 4 Request to send
- 5 Clear to send
- 6 Data set ready
- 7 Ground
- 8 Carrier detect
- 9 Check modern
- 20 Data terminal ready
- 22 Ring indication
|
 |
- 1 Carrier detect
- 2 Receive Data
- 3 Transmit data
- 4 Data terminal ready
- 5 Ground
- 6 Data set ready
- 7 Request to send
- 8 Clear to send
- 9 Ring indication
|

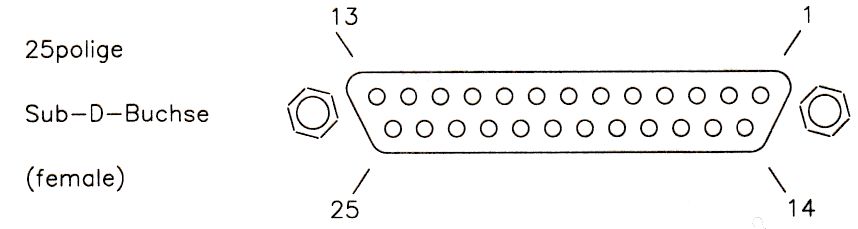

| Parallele Schnittstelle |
 |
- 1 Strobe
- 2 BIT 1
- 3 BIT 2
- 4 BIT 3
- 5 BIT 4
- 6 BIT 5
- 7 BIT 6
- 8 BIT 7
- 9 BIT 8
- 10 Achnowledge
- 11 Busy
- 12 Paper out
- 13 Select out
- 14 Autofeed
- 15 Error
- 16 Drucker Reset
- 17 Select in
- 18 Masse
- 19 Masse
- 20 Masse
- 21 Masse
- 22 Masse
- 23 Masse
- 24 Masse
- 25 Masse
|
| SCSI |
|
| PCI, PCI express |
|
| ATA |
eSATA: 3 GB/S, schnelle Schittstelle für externe Festplatten. |
SATA express |
| Thunderbolt |
Intel-Schnittstelle 800MBd. Thunderbold 3.0: 40 GBd |
| Light Peak |
10 GB/S |
Intel-Schnittstelle |
optosches Kabel |
 |
